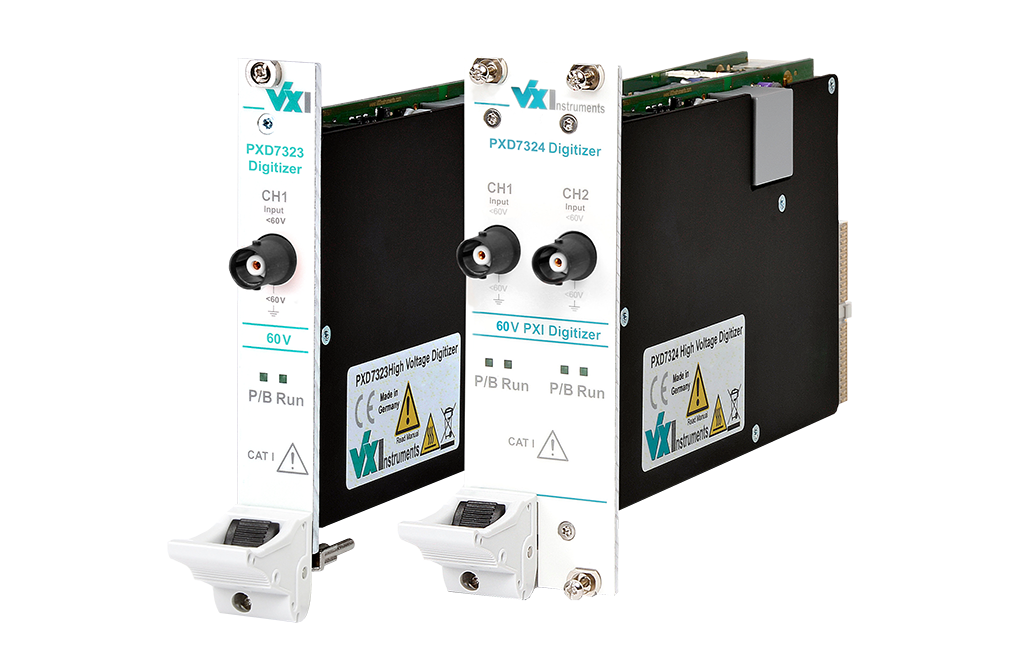

PXD732x 12 Bit Waveform Digitizer

• Available input voltage range with up to 120 Vpp
• 100 MS/s with 12 Bit resolution
• Fully isolated design with two independent channels

• Multiple instruments and channel synchronization possibilities
• Optional timer/counter engine for high speed timer/counter
• Optional DVM function for high precision measurement

The PXD732x 12 Bit Waveform Digitizer features two 100 MS/s simultaneously sampled input channels with 12 Bit resolution, input voltages up to ±60 V and a bandwidth with up to 50 MHz.
Every digitizer channel has its own 2 MB memory which allows up to 1 million samples.
Data can be acquired before and after the trigger event with a programmable sample counter, that controls the number of data points.
The PXD732x 12 Bit Waveform Digitizer has a high common mode rejection ratio (CMRR).
A great amount of trigger capabilities results in multiple instrument and channel synchronization possibilities.
