Function Generator

1 or 2 channels, potential-free
200 MS/s with 16 Bit resolution
Output voltage up to 30 V or ±15 V
Output current up to 30 mA or ±20 mA
Standards: PXI, PXIe, VXI

APPLICATIONS

High-throughput production test
Simulation of sensors for testing control devices/controllers
Test of sensor interfaces with 0 … 20 mA or 4 … 20 mA
In-circuit test

WHAT IS A FUNCTION GENERATOR?

A function generator (Fgen/FuncGen) can output standard waveforms such as sine, rectangle, triangle or trapezoid. In general, the voltage/current as well as the frequency/duration of the output signal can be freely adjusted.

This distinguishes the function generator from the Arbitrary Waveform Generator (ArbGen), which can also output freely definable waveforms.

VX INSTRUMENTS PARTICULARITIES

VX Instruments exclusively develops arbitrary function generators (ArbGens), because they cover a much wider range of applications than typical function generators.

You will find our arbitrary waveform generators here.

PRODUCTS

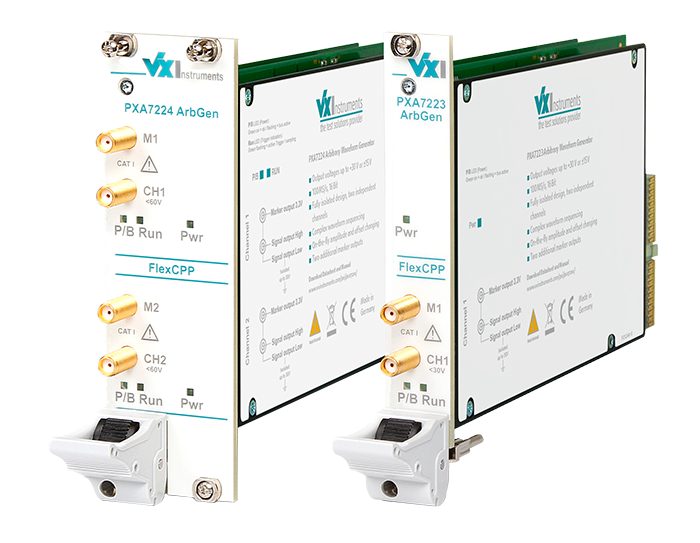

PXA(e)72xx PXI/PXIe Arbitrary Waveform Generator Family	30 V	200 MS/s	16 Bit	50 Ω	(Non-)Isolated	PXI/PXIe	Quote
PXA(e)73xx PXI/PXIe Arbitrary Current Generator Family	30 mA	200 MS/s	16 Bit	50 Ω	(Non-)Isolated	PXI/PXIe	Quote
VX2026 VXI Arbitrary Waveform Generator	±40 V	40 MS/s	14 Bit	50 Ω	Isolated	VXI	Quote
VX2701 VXI Quad Sine/Cosine Generator	±10 V	100 kHz	16 Bit	50 Ω	Isolated	VXI	Quote
