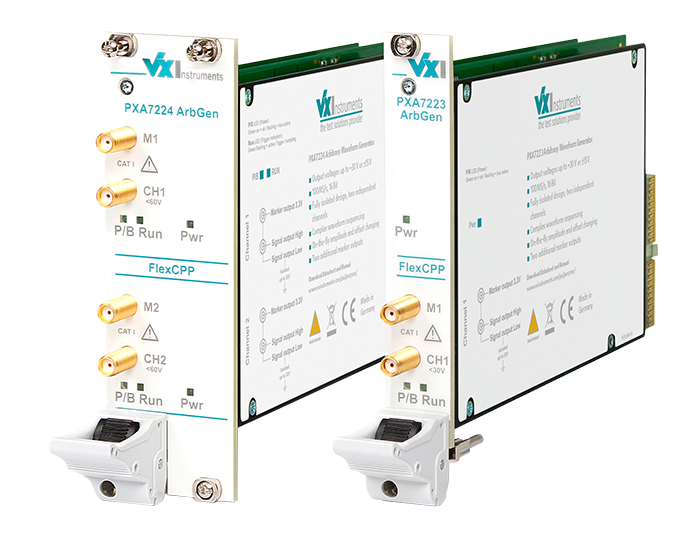

PXA(e)72xx PXI/PXIe Arbitrary Waveform Generator Family

• Output voltage up to +30 V or ±15 V
• Up to 200 MS/s with 16 Bit resolution
• Fully isolated design with up to 2 independent channels
• Complex waveform sequencing
• Multiple instrument and channel synchronization possibilities
• Highly configurable trigger engine

• On the fly amplitude and offset changing
• 1 marker output per channel
• Wide range of sample rates due to programmable internal PLL
• High bandwidth
• Available with PXI or PXI Express interface
• Based on VX Instruments FlexCPeP for easy custom design

The arbitrary waveform generators of the PXA product family are analogue signal generators and can generate voltage or current curves as well as high DC voltages in 1 or 2 channels.
They are characterized particularly by all channels being potential-free and by the high sample rate in combination with a high amplitude resolution. This means that differential signals can be output precisely even at high voltage potentials.
