PXI Power Supply
1/4 channels, potential-free, U/I measurement unit (16 Bit)
Maximum 10 V, 250 mA per channel
Programmable slew rates
Short rise and fall times
Standards: cPCI

APPLICATIONS

  • Power supply for tests with current measurement, e.g. stand-by currents
  • Semiconductor testing (diodes, transistors, shunt resistors)

WHAT IS A PXI POWER SUPPLY?

A PXI power supply provides the required power for a test application or additional devices. A constant output voltage is generated from the stabilized voltage of the PXI chassis.

There are devices with fixed output voltages or devices in which the output voltage can be freely programmed. Other features include, for example, a programmable current limit or the possibility to measure current and voltage. This function can then be compared to the properties of a PXI Source Measure Unit (SMU) .

VX INSTRUMENTS PARTICULARITIES

The potential-free power supplies of the VX66xx family stand for precision and reliability and are characterized by many extras such as extremely low noise, very short rise and fall times and additional measurement functions. The energy is completely provided by the PXI chassis, therefore external power supplies are not necessary.

All outputs are galvanically isolated, which among other things ensures low signal noise. It is also possible to connect power supplies in series.

PRODUCTS

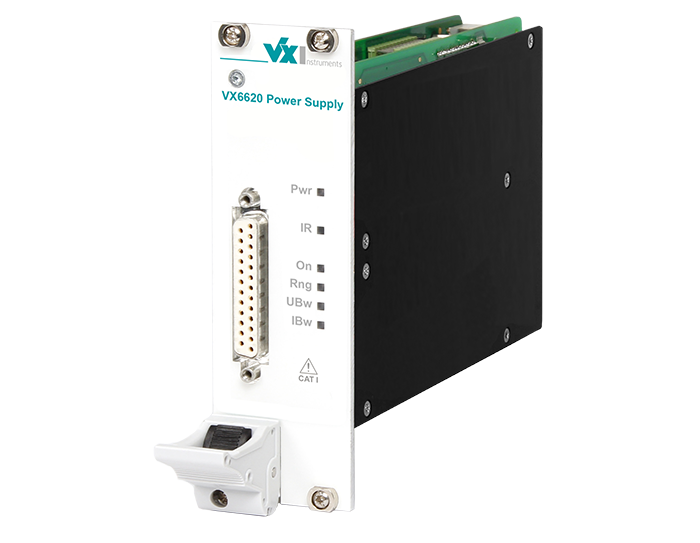

VX6620 cPCI System Power Supply VX6620 cPCI System Power Supply ±60 V 10 W 16 Bit 1 Channel Isolated cPCI Quote

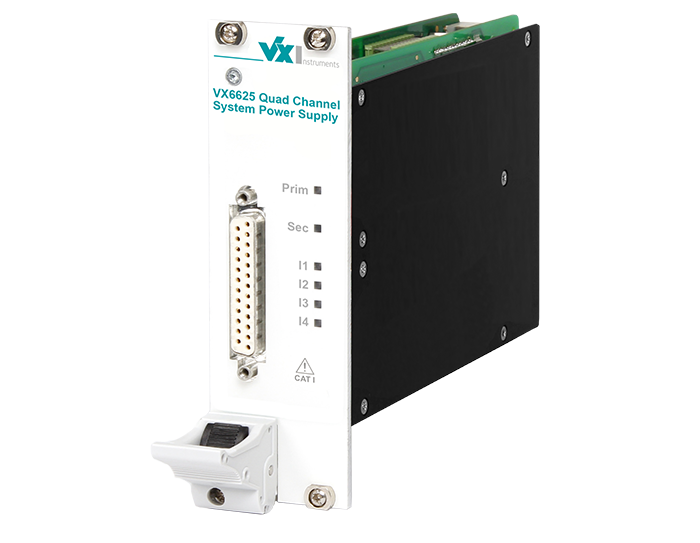

VX6625 cPCI Power Supply VX6625 cPCI Power Supply 10 V 10 W 16 Bit 4 Channel Isolated cPCI Quote



Find Distributor

FURTHER RESOURCES

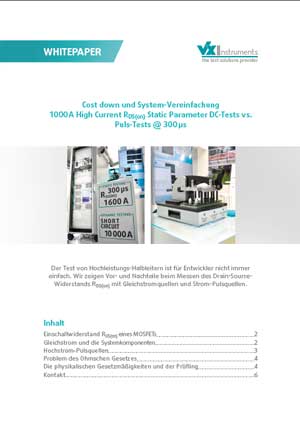

Whitepaper - Cost down und System-Vereinfachung 1000 A High Current RDS(on) Static Parameter DC-Tests vs. Puls-Tests @ 300 μs Whitepaper Cost-reduction and Simplification: 1000 A High Current RDS(on) static parameter DC testing vs. pulse testing @ 300 μs Download
