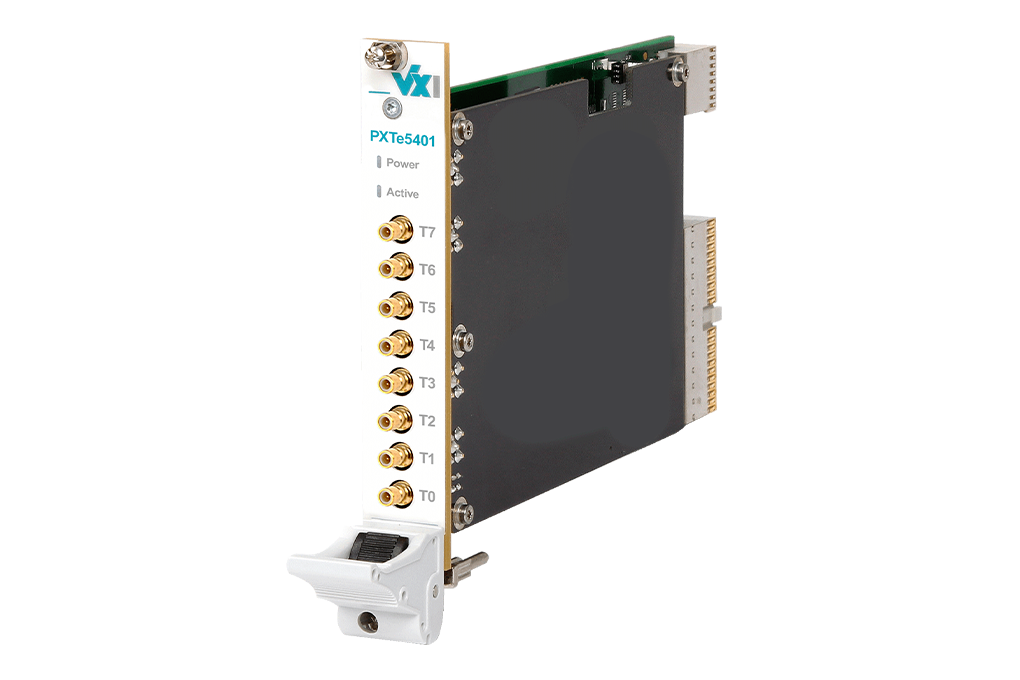

PXTe5401 Trigger-Module

• Easy linkage of various external modules to the PXI(e) trigger bus
• High configurable trigger matrix
• 8 independent configurable trigger ports

• Inputs/Outputs compatible with TTL standard
• Software controlled triggering of any target device

With the PXTe5401, the eight PXI backplane trigger lines, as well as software triggers, can be easily connected individually to the eight front-panel connectors of the trigger card. This allows devices outside the PXI system to be triggered, or these devices can also trigger instruments in the PXIe system.
