PXCe4112 12-Slot Hybrid PXIe Chassis

• Compact 19″ design with only 2 U in height
• Save 33 % of space compared to a regular 3U PXI Chassis
• 12-slot PXI Express chassis

• BNC conectors for 10 MHz clock input/ output at the rear side
• easily replaceable fan unit

To reduce space in modern test systems the PXCe4112 features a very compact 2U 19″ design.

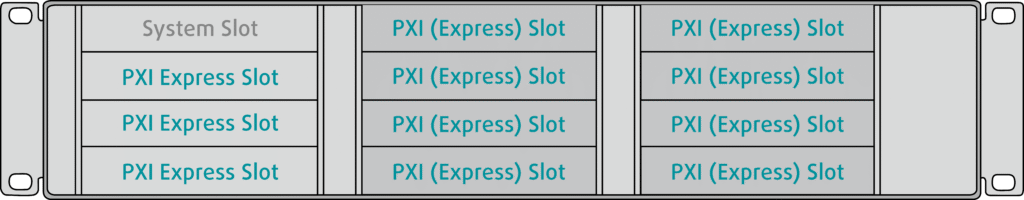

The following slots are available:

• 1 PXI Express system controller slot
• 8 PXI/PXI Express hybrid peripheral sots
• 3 PXI Express peripheral slots

This provides the user the highest flexibility to configure his test system with PXI and PXI Express devices.

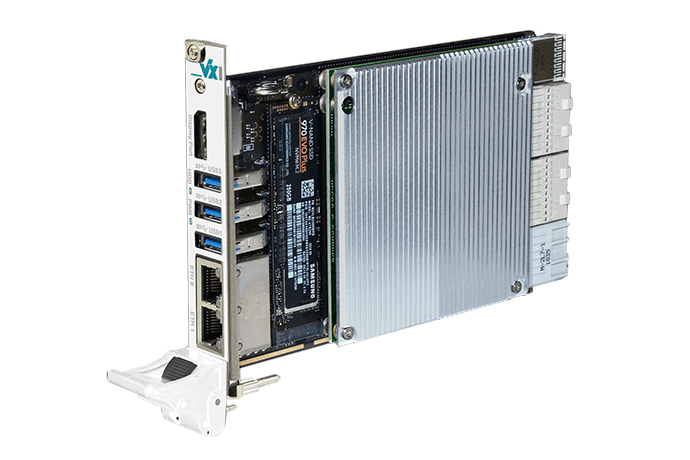

Also available is the PXIe3110 PXI Express Embedded Controller. Equipped with a modern Intel® Core™ i5 CPU and a big variety of interfaces, the controller is a perfect
addition to the chassis.
